MCD Products

While MCD is known for their popular American Duo dual roller shades, they make other products as well. The original exterior shades are still available, as is a complete selection of wheel covers, mirror covers, skylight shades, and a large selection of custom roller shades. In every one of these products you won't find a difference in quality. Every product that MCD produces is built to exacting tolerances and utilize high grade materials in their construction. The only differences will be in how each product is designed to be used.

ClearView Sunscreen

Before we get too far into specific products, I'd better take some time out to talk about the proprietary solar screen material that MCD uses in many of their products. I found that not all screen material is created the same. Many sunscreens are made with a two-over-two weave, in that two vertical strands are laid together over two horizontal strands and then weaved in such a fashion. This type of screen varies greatly in effectiveness. It relies more on blocking the light than filtering the heat. When this screen is viewed straight on, it's much darker than MCD's ClearView screen. When you view this screen on an angle it gets even worse and it's extremely hard to see out of the coach with this weave. This method gives the screen manufacturer an inexpensive way to make screen that offers some heat reduction. It also allows them to use inexpensive fiberglass screen threads, pretty much like a bug screen on your windows at home. But this method is not as effective at reducing heat intrusion and it seriously cuts down on the visibility through it, particularly when trying to view at an angle.

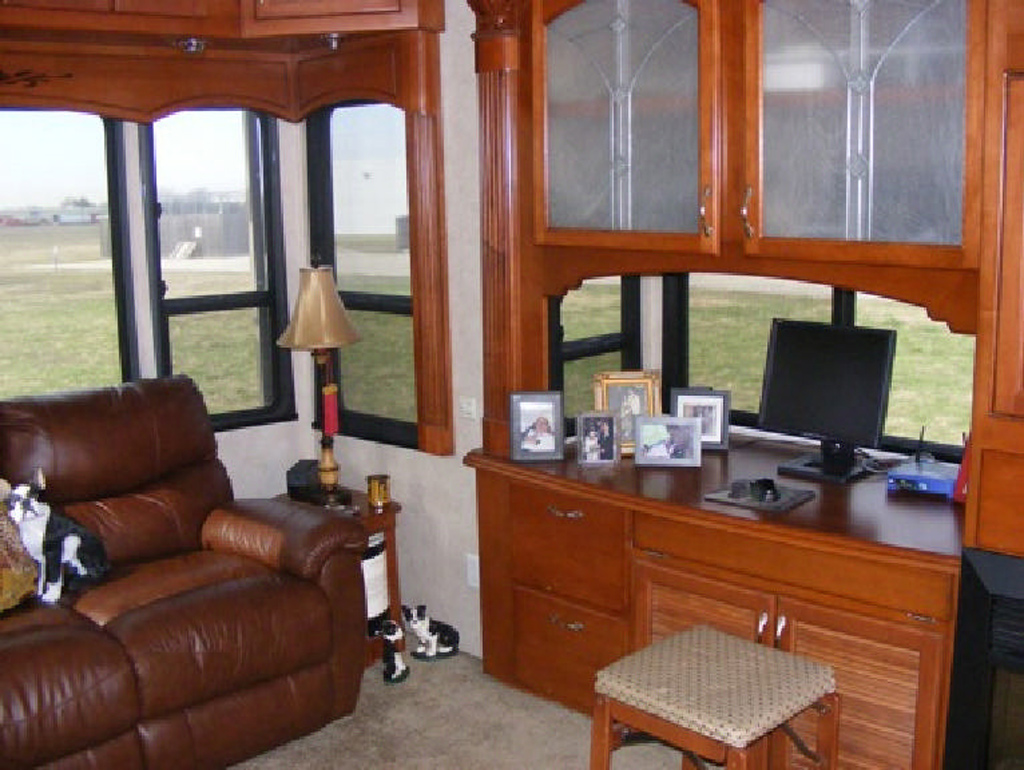

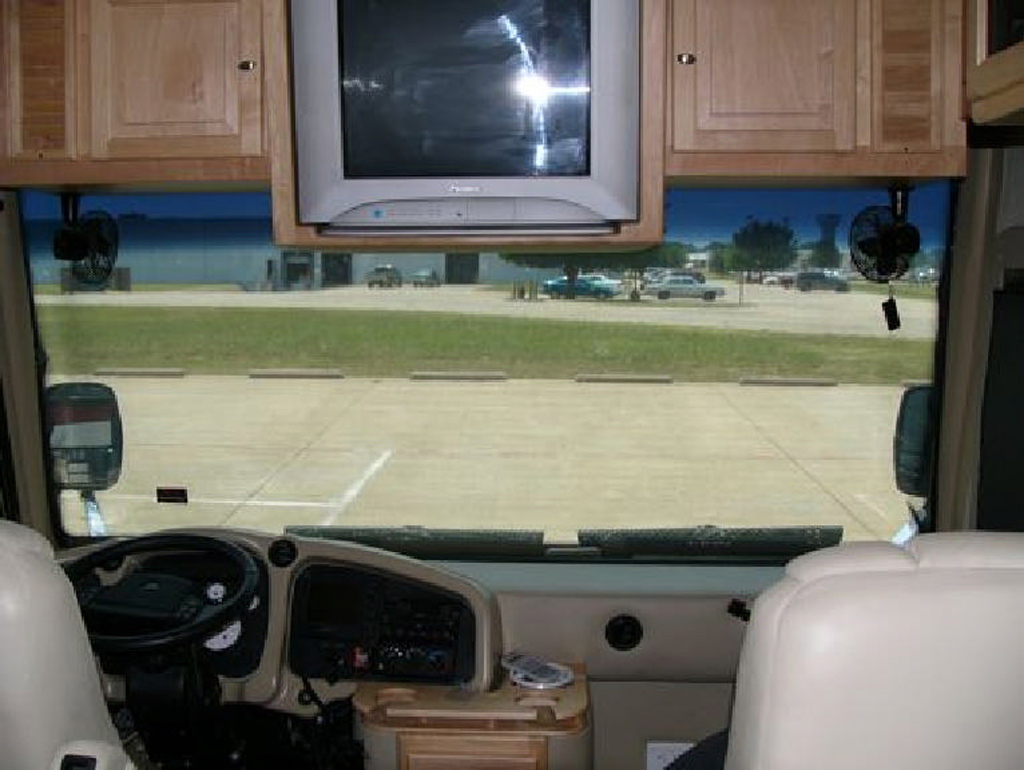

MCD's ClearView screen material is very high tech. When comparing it to competitor's screens think of it as comparing the aluminum in a Boeing 747 to a soda can. There's that much difference. The MCD screens use a one-over-one weave and don't use inexpensive fiberglass as the material. This design makes it easy to see out of the coach when the day shades are down. Viewing at an angle has minimal effect and the view remains nice and clear. With this kind of view my initial impression was that it wasn't going to be doing a very good job of filtering the heat out of the coach. But this system does a much greater job of filtering heat. I tend to think of it more as a thermal barrier than a sunscreen. I've viewed competitive screens and the MCD screen under a magnifier and could see the difference in the construction. The two-over weaves were chunky and rough coated while the MCD screen was crisp and clean. The two-over weave also has a tendency to pull during the weave process. When holding screen panels up to the light you could see dark streaks where the threads had bunched together and lighter gaps in between. Not that impressive to look at actually. But when viewing the MCD fabric it was clean and consistent throughout the entire screen panel and it was easy to see out of while inside the coach. Interestingly enough it's virtually impossible to see into the coach during the daytime from outside. If it's dark outside and you've lit up the interior of the coach this changes however, which is why the nighttime privacy shades are also used. During normal daytime activities the daytime shades will act much like a one-way mirror.

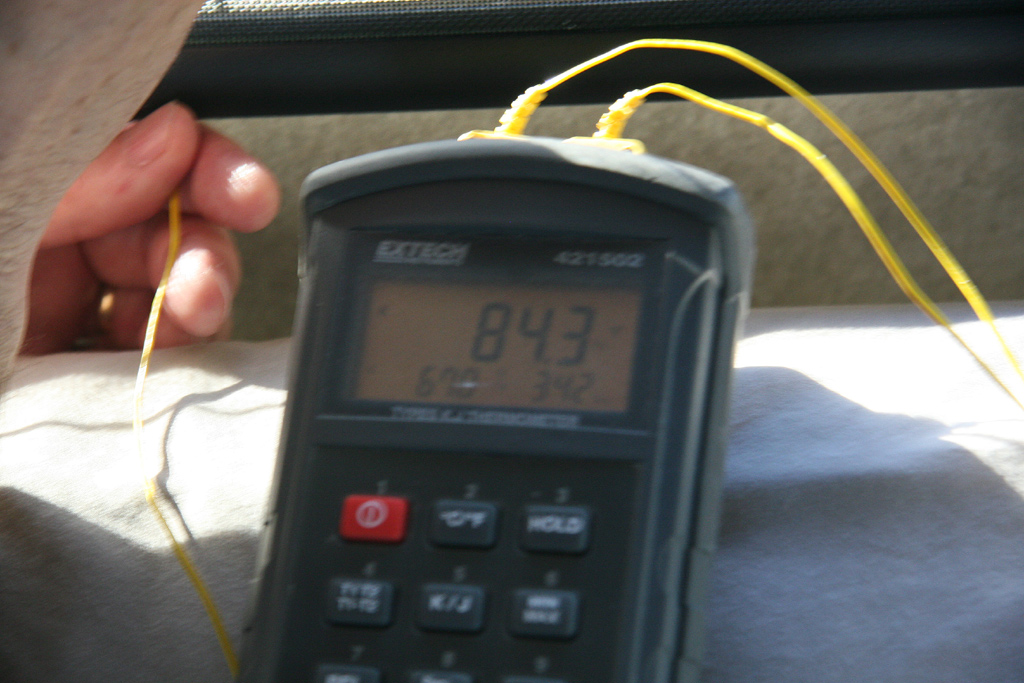

When performing some temperature readings one probe was placed between the screen and windshield while the other probe was placed inboard of the screen. I was able to observe dual samples at the same time using this method. On a softly lit day with ambient temperatures around 54 degrees Fahrenheit I observed roughly a 24 degree difference between the inside of the shade and the outside of the shade. This was on the windshield. When similar tests were performed on a dual pane insulated side window the difference was 17.3 degrees. On a nice 90 degree, sunny day the temperature readings between the windshield and screen are reported to be up to 50 degrees higher than the temps on the inside of the screen.

Further proof of my "Thermal Barrier" theory was made after the shades were installed and everything cooled down overnight. The temperatures were down around freezing when we were there so my windshield got plenty cold overnight. When morning came I'd raise the sunscreen shade and it felt like a freezer was just turned on. The sunscreen held back the cold air, just like it holds back the hot air on a warm, sunny day. So, it's obvious that this high tech solar material has more going for it than just UV and sunlight filtering. I was very impressed.

Exterior Sunscreens

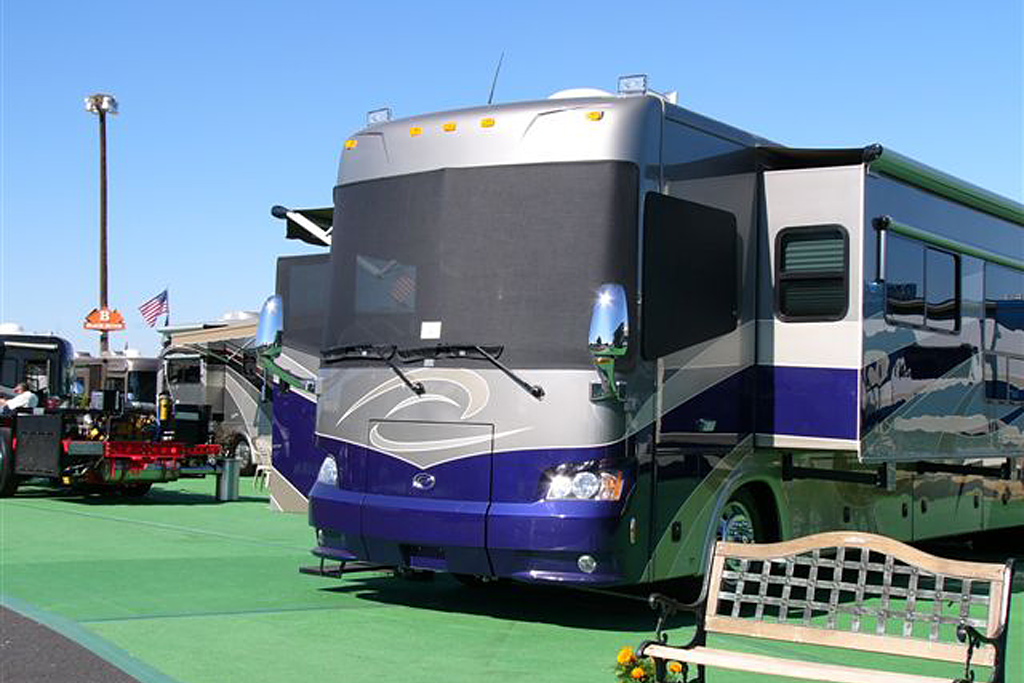

This is the product that started it all. MCD Exterior Sunscreens use the same exclusive ClearView technology as the Interior Sunscreens except they attach to the outside of the coach. MCD's computerized design process ensures that every sunscreen will be cut to exact tolerances. Their exclusive No Sag technology means that wrinkles and sags are a thing of the past. These screens do an excellent job at filtering out solar energy while still retaining the ability to see out of the coach. However, exterior screens require a bit of setup every time you want to deploy them. It will require a ladder to reach the top of the windshield so that you can attach the screens. When it's time to remove them you must get out your ladder again or pop them free with an awning rod and deal with any rain or dirt that has collected in them, then find a place to store them. With the advent of the American Duo interior roller shades, the demand for exterior shades has gone down.

It has been argued by some that you need to keep the shades on the outside of the RV to prevent heat from passing through the glass and building up inside the coach. However, I've performed some tests with a dual probe digital thermometer that prove that the interior solar shades are just as effective, while being super easy to deploy. Simply press a button to lower them or roll them back up. I can only conclude that the exterior shades conduct heat to the windshield because they are resting on the surface of the glass while the interior roller screens have the ability to reflect the heat back through the windshield. Indeed, the interior screen material was not overly hot to the touch so it must be reflecting rather than absorbing the heat.

American Solo Shades

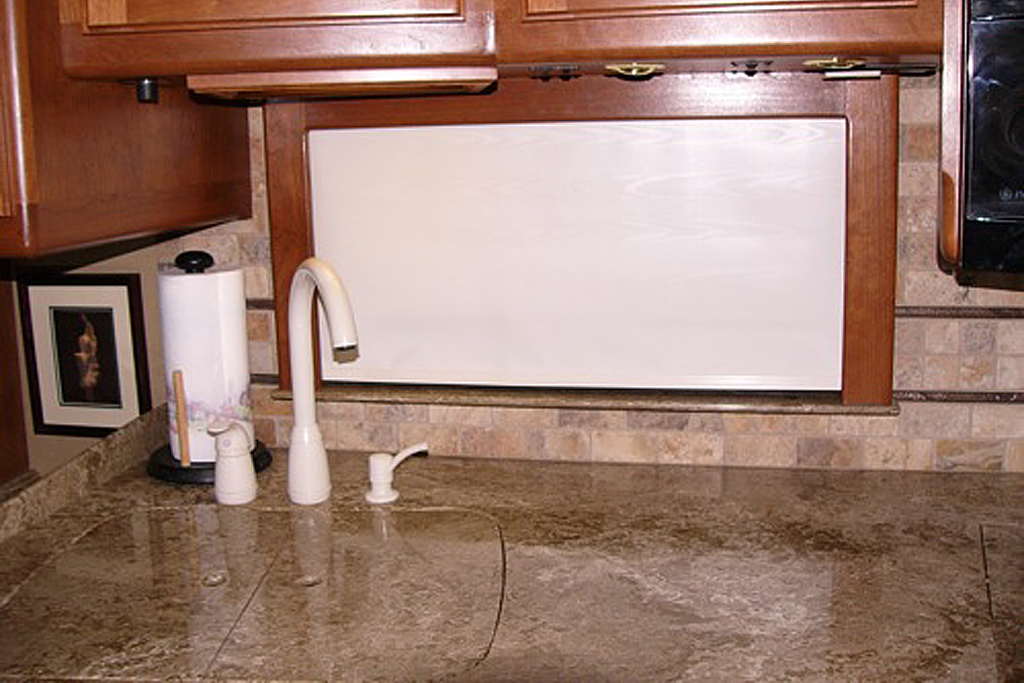

The Solo shades are single roller shades, similar to window shades that you might find in your home. Except these are totally different in that they are designed and built to MCD's critical specifications. These roller shades attach to a mounting rail via brackets. The entire rail and roller assembly simply snaps into place into a series of mounting clips. These shades can be fitted with the ClearView sunscreen and used as day shades or they can be fitted with 100% light blocking or room darkening privacy shades for nighttime use. A wide selection of shade material is available so that you can choose the style and color that best matches the interior decor of your particular coach.

In addition, these shades can be manually operated or powered by electric motors. MCD's new Glide-Rise IV technology means you just give a tug to the bottom of the manually operated shade and it effortlessly retracts onto the roller. There is one adjustment wheel on the end of the rollers to control the rate of ascent while a second wheel on the opposite end sets the auto-stop position so that it doesn't roll up too far. This is a real slick design and, if needed, can be easily adjusted, although once it's set it probably won't need any future adjustments. The powered shades utilize MCD's compact 12 volt DC motor that resides inside the roller. No additional space is needed to locate the motor. The motor is fed 12 volt power from a nearby location and can be remotely controlled via any number of controllers. You do not have to run wires from a switch to each shade motor, just a common 12 volt feed. All switching is done remotely via the wireless controller(s).

American Duo Shades

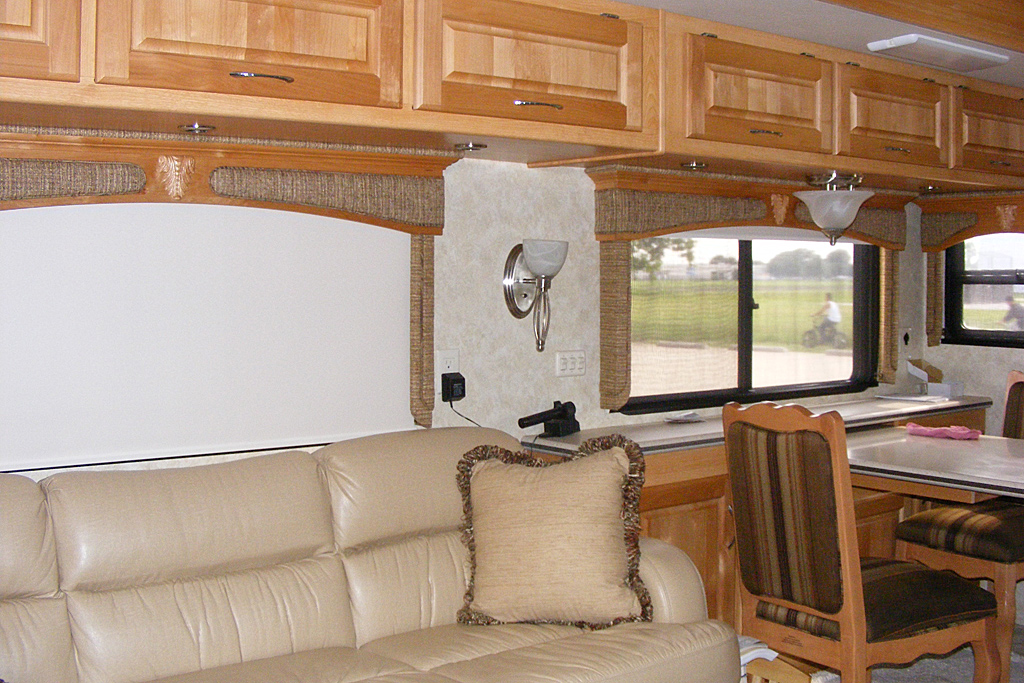

The Duo shades are similar except that two rollers are mounted vertically above each other. This allows the use of one roller with a daytime solar screen shade while the second roller is fitted with a nighttime privacy shade. The rollers can be manually operated or fitted with 12 volt motors for power operation. A hybrid design can even be used whereby the day shades are manual and the nighttime shades are powered. This was the system chosen for the main living area in my coach. The Duo design packs both rollers in a compact design so that it fits into most existing window valances on motorhomes.

Powered Windshield Shades

MCD's windshield shades can be either Solo or Duo. The biggest difference between the windshield shades and remote powered shades is in the way they are controlled. Windshield shades utilize rocker switches rather than wireless remote controls. This is for safety reasons as well as convenience. Most coaches already have a pair of basic powered sun shades so it makes sense to utilize the existing switches. In addition, the windshield shades have top and bottom adjustable limit settings that are programmed into the motors. Each shade will have two lower limit settings. One will be for when the ignition is off and another setting will be for when the ignition is on. This MCD developed safety feature prevents any accidental lowering of the shades past a user set point. If a rocker switch would fail in the closed position this prevents the shade from blocking the driver's view when driving. Competitive shades do not have this safety feature and is just another illustration of the kind of commitment that MCD has towards their customers.

Velcro Attached Shades

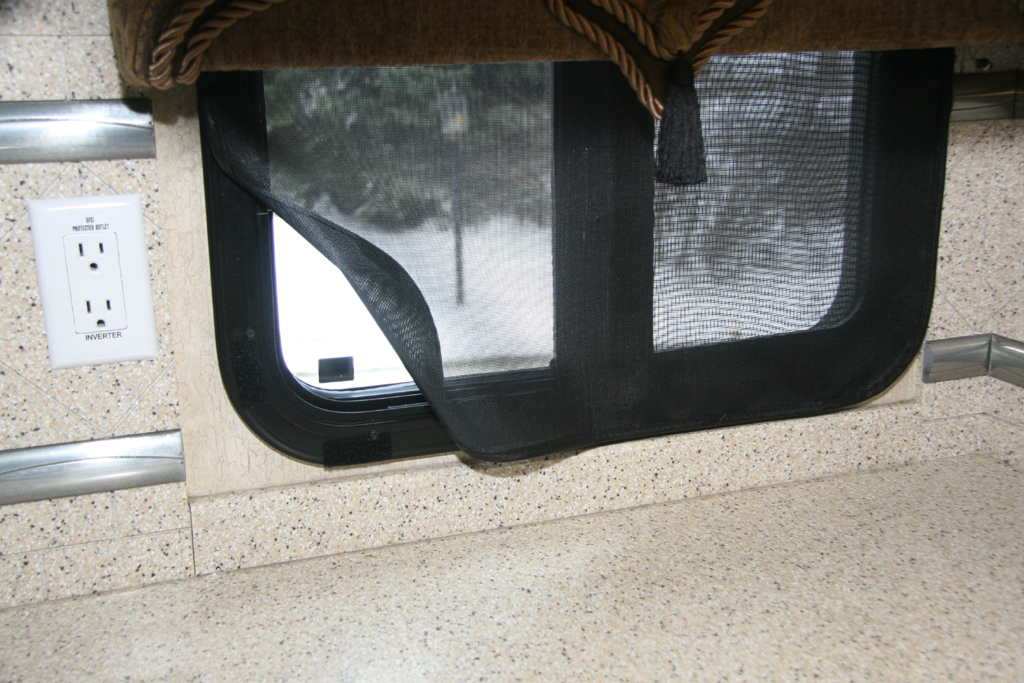

Sometimes it's just not practical to utilize a roller shade. Yet, the protection of a good sunscreen is desired. Maybe the valances are too small to place two rollers into. Or, maybe the shade will be on there 95% of the time and won't need to be removed. In this case a Velcro attached shade using MCD's ClearView technology is a good choice. I actually have them installed in three locations on my coach. Two were for the above mentioned reasons while the third one was for the entry door. Having a hanging sunscreen dangling in front of the door means that I'd have to power it up every time I wanted to use the door. By attaching a Velcro sunscreen to the screen door it opens whenever the door does while still giving me excellent solar protection.

Skylight Covers

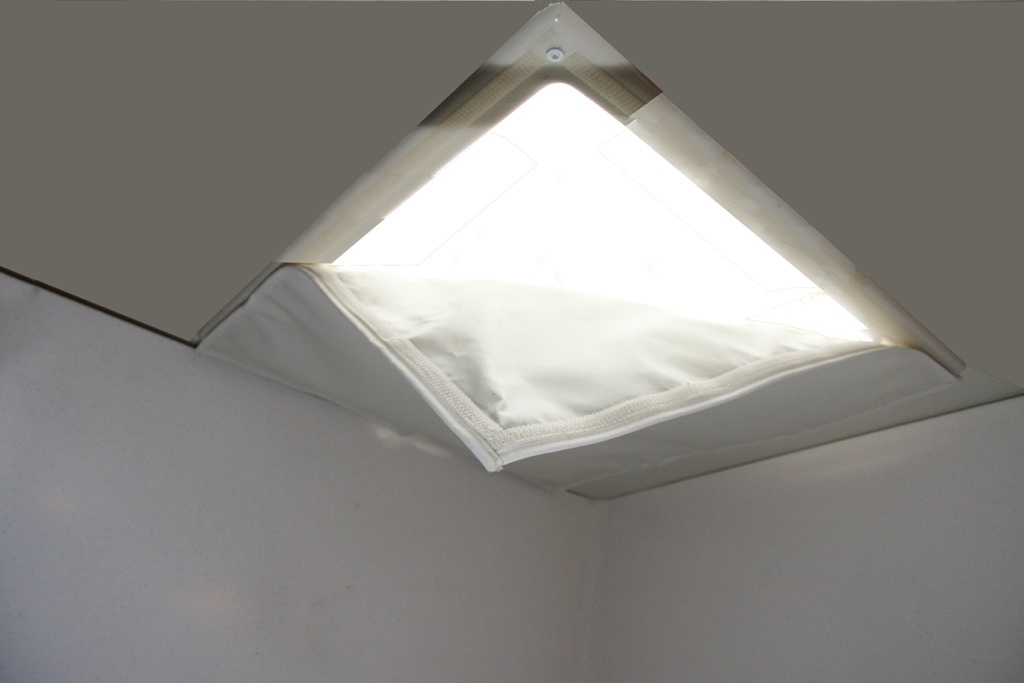

This is one of the first things I installed on my coach years ago. Skylights are great for letting light into the coach but they also let lots of heat into the coach. On hot days this is just not something you want. Also, when parked under your campground's big street light you may have trouble sleeping with all that light coming in. MCD Skylight Covers are cut to fit the exterior of your skylight. They are made of a high R-value multi-layer material with an easy to clean vinyl surface that matches your ceiling. They simply attach with 3M Dual Lock material (similar to Velcro, only stronger) and can easily be removed.

Mirror Covers and Bras

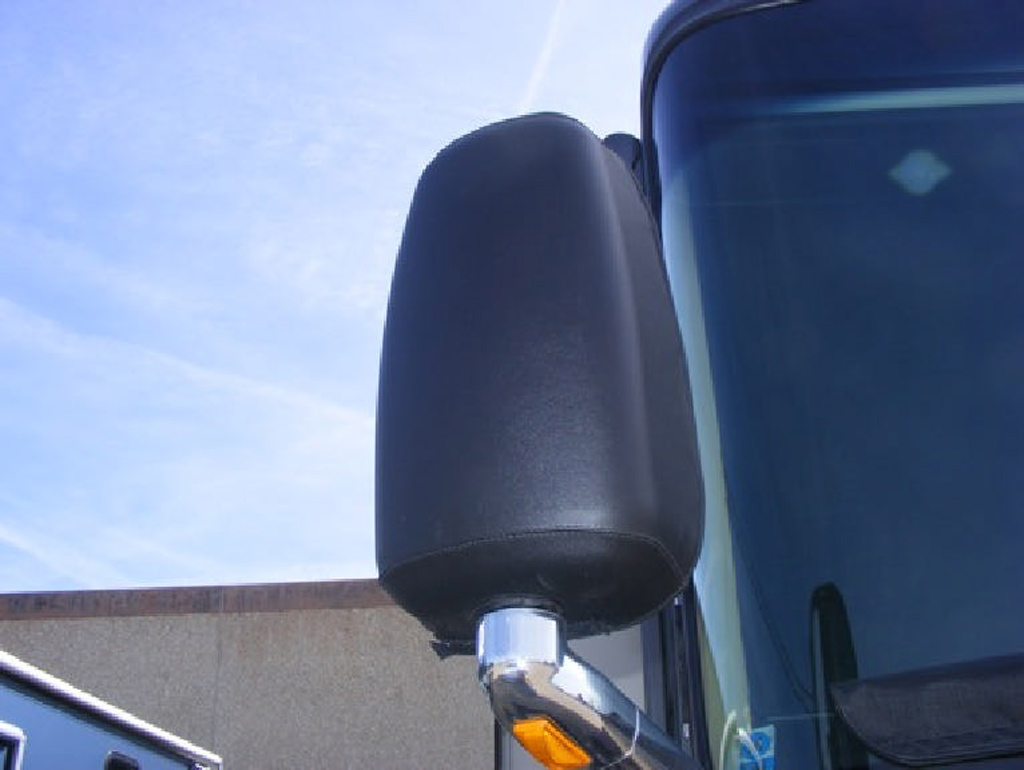

MCD makes two styles of mirror protection. The Mirror Cover completely encloses the entire mirror assembly and protects your mirrors from birds, bugs, or the environment. They slide over the mirrors and close up with a marine grade vinyl zipper. The 8-way stretch vinyl covers provide a glove-like fit.

Mirror Bras only cover the chrome or painted surface of the mirror housings. They attach with clips and allow use of the mirrors with the bra attached, unlike the Mirror Covers, which totally enclose the mirror. Again, they use the same easy to clean 8-way stretch vinyl as the mirror covers.

Wheel Covers

The sun's UV rays really do a number on RV tires. RV tires typically don't wear out from mileage. They wear out from age. Tires are designed to be driven in order to release the lubricating compounds within the tires. When they sit around, the sun's rays attack the sidewalls and the tires dry out from sitting. But, that's just the nature of most RVs. They sit, more than drive. To help minimize this damage it's of huge benefit to shield your tires from the sun. Now, tire covers have been around a long time and they range from cheap, flimsy cotton sacks to heavier vinyls. The majority of these either slip over the tires or else attach to the coach via some button fasteners. Getting them to stretch and fit can sometimes be a chore.

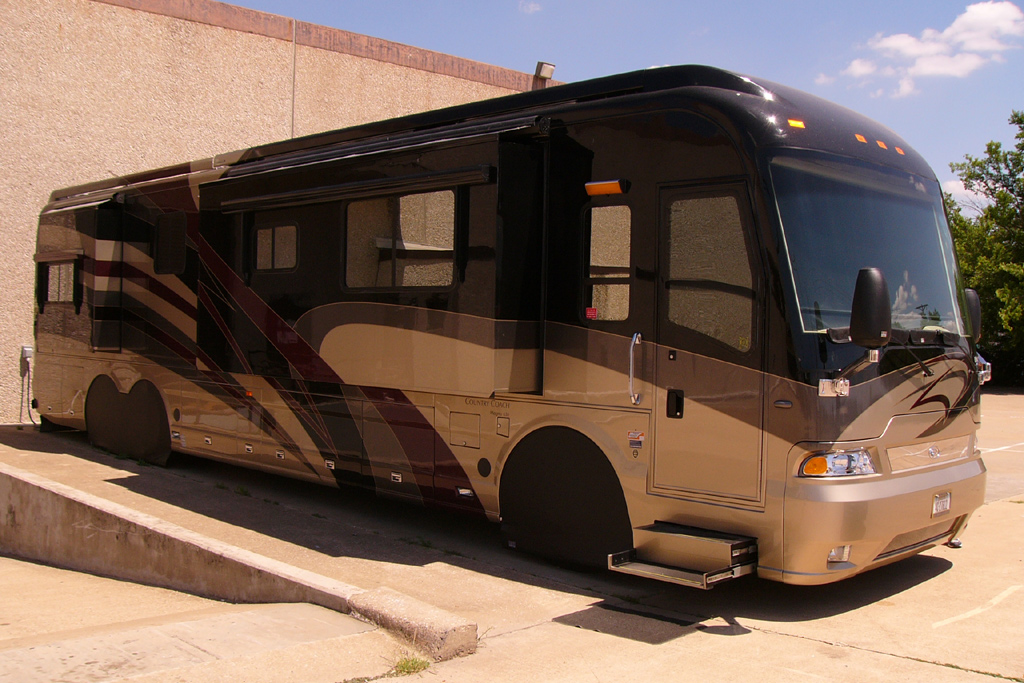

MCD Wheel Covers are made of the best 8-way stretch vinyl. This gives maximum protection while also providing an attractive appearance. Rather than use button fasteners to snap the covers into place, MCD has come up with an exclusive GlideTrac technology. These tracks mount inside the lip of the wheel wells and the wheel covers are computer designed to perfectly fit. Just slide the upper hem of the covers into the GlideTrac and rotate until the cover lines up and fills the wheel well. The base of the covers is adjustable and steel bars are used to weigh it down and keep it from blowing around. The weights can be slid into a number of pockets on the wheel cover and the excess flap folds up and attaches with Velcro straps to the backside of the wheel cover. All in all, a very nicely engineered design.

Remote Controllers

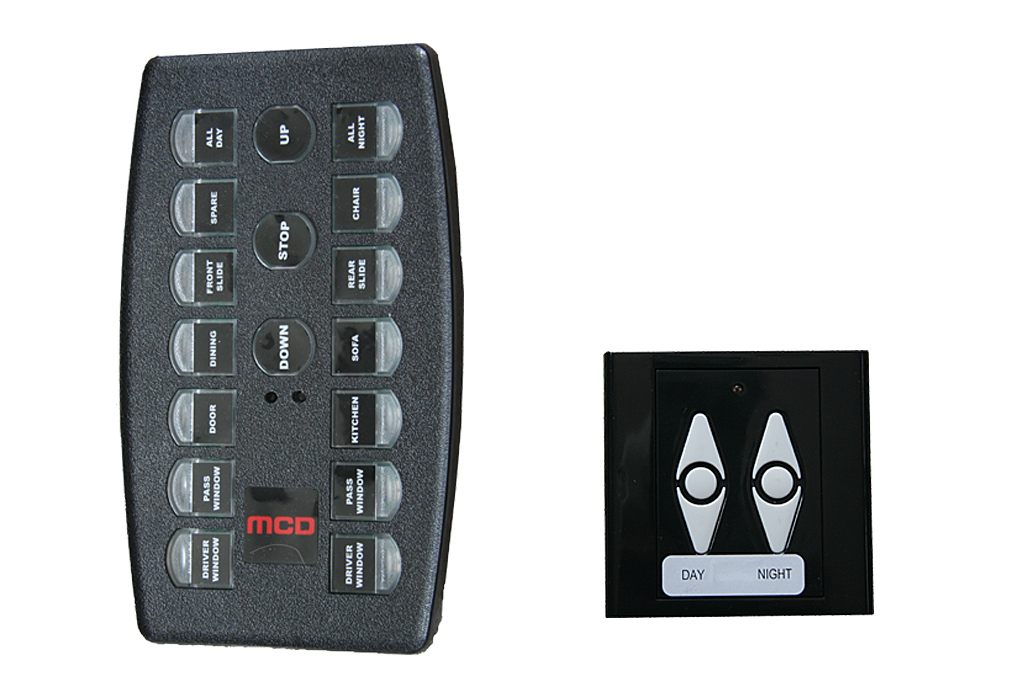

With the exception of the windshield shades, all powered MCD shades are operated by wireless remote controllers. Any one shade can be married to any number of controllers. There are 2-channel controllers as well as 14-channel controllers. A 2-channel unit typically controls one window with dual powered rollers. An example of this would be a cockpit side window. The 14-channel controller controls many shades. Each button will be custom labeled for your coach. A single shade can be controlled from multiple controllers. For instance, a cockpit side window can be controlled via a 2-channel remote mounted near the driver's seat. It can also be controlled via a 14-channel controller. In addition it is possible to program any button on any controller to handle multiple shades. This means that that same cockpit window shade can be controlled by an "all night shades" button or whatever else you can come up with. The remote controllers are wireless so they do not require any 12 volt wiring. The 2-channel controllers use a CR-2032 watch style battery and the 14-channel controllers use a pair of AAA batteries. You can mount any of the controllers on the wall or you can use them as hand held if you desire.

In the next chapter we'll follow the installation process of a set of MCD windshield shades.
